Equipment Finder
PACE®-F
As lateral lengths continue to increase, drillers need a rig with more power and greater tripping speed. Nabors PACE®-M800 rig features innovative advanced technologies that provide both.
Key Features
- Three 1,600-horsepower mud pumps with 7,500 PSI to deliver high flow rates
- 3,000 horsepower drawworks that enable trip speeds of 380 feet per minute
- When drilling laterals at or greater than 7,500 feet, the PACE®-M800 rig’s racking capacity eliminates the need to lay down drill pipe between wells on the same pad.
PACE®-S
As lateral lengths continue to increase, drillers need a rig with more power and greater tripping speed. Nabors PACE®-M800 rig features innovative advanced technologies that provide both.
Key Features
- Three 1,600-horsepower mud pumps with 7,500 PSI to deliver high flow rates
- 3,000 horsepower drawworks that enable trip speeds of 380 feet per minute
- When drilling laterals at or greater than 7,500 feet, the PACE®-M800 rig’s racking capacity eliminates the need to lay down drill pipe between wells on the same pad.
End-User License Agreement
The SmartPLAN® tool seamlessly manages both the operator’s and drilling contractor’s workflows to deliver digital drilling recipes that optimize efficiency and improve performance.
Key Features
- Enables digitalization of the operator’s and drilling contractor’s workflows
- Step-by-step driller instructions are presented on an intuitive user interface
- The recipe manager incorporates drilling recipes that are configured to reflect industry-wide best practices
- Integrates seamlessly with automation tools like SmartDRILL® and SmartSLIDE® to trigger automation
Blue Force® LWD DeepView®
Nabors offers the FracView® high-resolution LWD imager in 4.75 and 6.5 in collar sizes covering borehole diameter ranges from 5.875 to 9.5 inches. FracView was the first commercially available LWD borehole imager demonstrated to operate in long horizontal wells drilled with oil-based mud.
Key Features
- DeepView Log Viewer capable of viewing and analysis of large volume high resolution drilling dynamics and imaging data in both time and depth domain
- Autonomous operation on any BHA and in any mud
- Suitable for Along String Measurement applications
- Compact 5 ft. long tools
- Economical service delivery
- Battery power and memory for >200 hrs of logging time
Predictive Drilling
Enhance ROP and minimize drilling dysfunction with Predictive Drilling. Control auto driller set points remotely using cloud based connectivity.
Key Features
- Enables remote control of rig site Auto Driller setpoints through a seamless cloud-to-cloud connection, without the need for any additional rig devices
- Bring substantial cost reductions per foot of drilling to your operations through increases in average ROP and decreases in vibration, mitigating drilling dysfunction
Red Zone Robotics (RZR)
The iRacker® autonomous tubular handling system, offered in electric and hydraulic-powered units, enables completely hands-free pipe handling. Workers are no longer required on the rig floor to trip pipe.
Key Features
- Allows for offline stand building
- Modular desig for easyt installation on any AC rig with the use of two cranes
- Seamlessly integrates with the SmartROS™ control system, allowing the driller to control all rig floor operations from within the driller’s cabin
Robotic Pipe Feeder
The Canrig® robotic pipe handler is capable of automatically performing fast pipe handling, including spinning operations, on a drilling rig.
Key Features
- Fully electric, nine axis robot for pipe and casing
- Self-contained with hardware controls built-in for easy installation and integration
- Low maintenance requirement due to use of standard electric components and oilfilled gears
Robotic Pipe Deck Handler
The Canrig® robotic pipe deck handler picks up pipe, casing, BHAs and subs from either pre-loaded magazines, or directly from the pipe deck.
Key Features
- 3500 kg Lifting and Spinning Capacity
- Reduce Cycle Time, All-In-One Hands-Free Operation
- Fully Electric, Reduced Noise and GHG Emissions
Energy Efficient Lighting Solution
Canrig’s proprietary design, ILLUMIC lighting system, is designed to maximize worker’s visibility by illuminating the overall wellsite using energy efficient and maintenance free light-emitting diode, LED, fixtures mounted at the top of the mast on a custom bracket. The ILLUMIC system reduces noise, CO2 emissions, costs and man-hours related to relocating and maintaining multiple portable light towers on location.
Key Features
- Seamless installation with our custom crown-mounted framing
- Fuel savings of 29 gal/day with a reduction of 213 kw/hr to lessen carbon emissions
- Maintenance-free LEDs increase energy efficiency and reliability
- Lower energy consumption increases LED life span 10+ years
- Lower overall noise on rigsite when replacing light towers
- Automatic on/off capabilities based on available light, adding additional energy savings

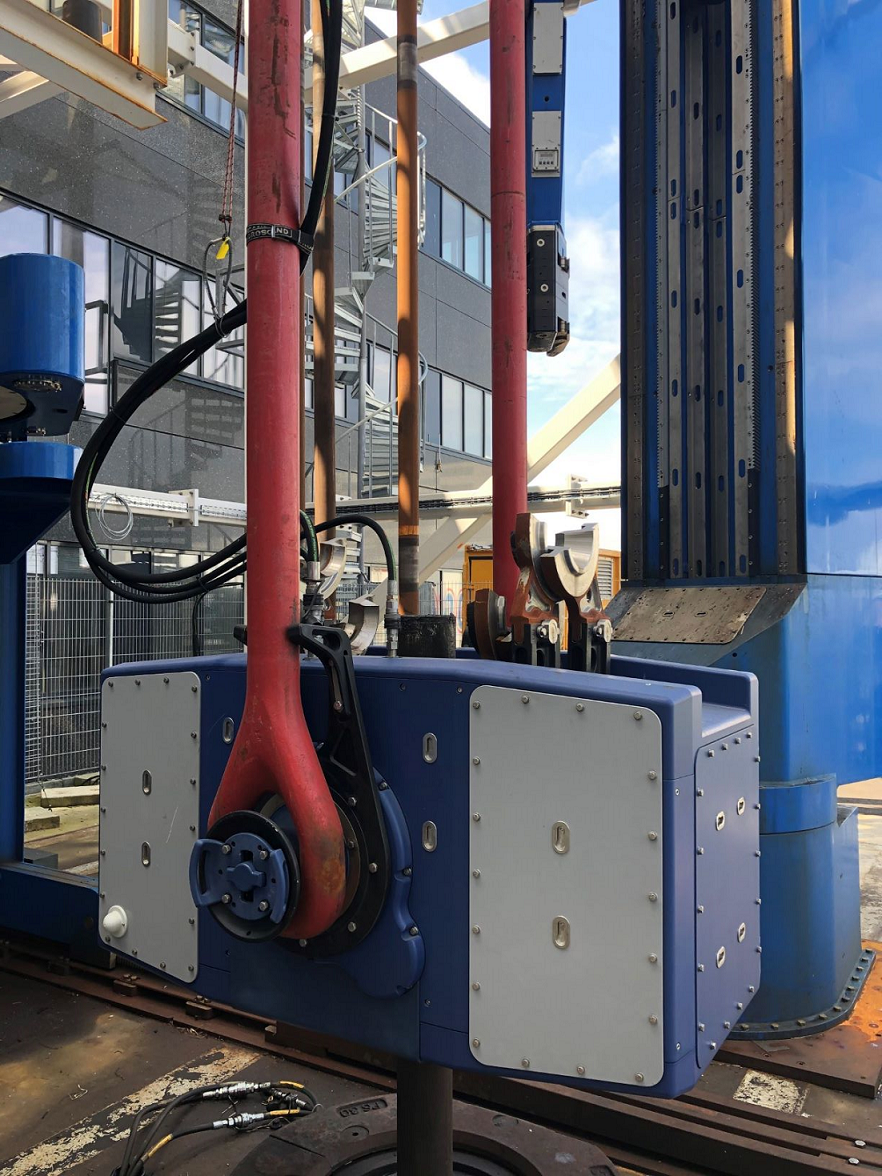

Canrig® Sigma Top Drive
The Canrig® Sigma 500-ton top drive is the next generation top drive, completely reimagined to endure the harshest drilling conditions while operating with the highest continuous torque in its class. Designed to endure the harshest drilling conditions, this all-new, innovative top drive provides more power, performance and torque density than ever before, while enabling greater automation and remote-control capabilities – both at the surface and downhole.
Key Features
- High Torque Efficiency for longer lateral wells
- 30% less components for safer operations
- Advanced automation through seamless integrations
- 20db(A) reduction significantly decreases environmental noise
- 5-10% more energy efficient
SunDowner®
Nabors’ SunDowner is capable of being off-loaded and assembled on an offshore platform in a single day…from sunup to sundown. The short rig-up time results in significant mobilization cost savings.
Key Features
- Three Caterpillar 3512C engines rated at 1,476 horsepower, each driving one Kato 1365 KW generator, for a total of 4,428 horsepower
- Loadmaster Bootstrap style 142 ft telescoping mast with a maximum rated static hook load of 600,000 lbs on 10 lines
- Rig floor which provides additional flexibility to configure the rig for different well site locations.
Custom Integration
With over 20 years of experience in designing custom solutions for the oilfield industry, engineers are available to integrate top drives, catwalks, casing running tools or other equipment into any desired rig, including rigs of the future or older classes of rigs ready to see a new age of drilling
Key Features
- Service Loop Customizations
- Integrated & Split Block Options
- Rig Power System Integrations
Canrig® AC Top Drives
Canrig manufactures, markets and services a full range of electric top drive systems for most land and offshore rigs. This includes top drives in every size and configuration to meet any drilling application whether marine, desert, jungle or arctic environments.
Key Features
- Built-in capabilities for expanded drilling technologies with the Smart Suite of products
- Engineered and manufactured to API 8-C standards and carry the API monogram
- Available in portable, integrated and offshore configurations
- Established, dedicated parts and service team available to our customers through Rigline 24/7™
Casing Drive Systems
The Canrig® CDS is an adaptive and powerful casing running tool that serves many uses throughout casing operations. Whether the tool is used for an entire run, used for making up connections, as a fill-up tool, reaming casing, or just on stand-by in case of stuck pipe, the CDS can benefit any casing operation.
Key Features
- Field-proven slip design, patented link tilt pipe handling equipment, and a safety interlock system to maintain control of the casing
- Canrig’s global network of services provides 24/7 operational and technical support
- Provides the torque and ability to rotate and reciprocate casing to ensure it gets to the bottom
- Its compact design and light weight provide single mast rigs with safer operations and faster tubular running times
- The unit’s overall design makes it quick to rig up/down on a variety of different rig designs
- Engineered with field-proven technology for performance and serviceability
Catwalk
The Automated Power Catwalk C35 from Canrig is designed to individually index racked drill collars, drill pipe and casing into a center carrier where they can be lifted to the drill floor.
Key Features
- Prevent accidents by virtually eliminating human interaction with tubulars
- Remote control cabability
- Models are aviable to accommodate any tubular from pickup subs to 30-inch casing
Torq-Matic™ Wrench
The Canrig® Torq-Matic™ fully automated floor wrench with PLC control. Remote con- trolled capability allows the unit to be operated from the driller's console or from various rig floor locations.
Key Features
- Remote-controlled capability allows the unit to be operated from the driller’s console or from various rig floor locations
- Multiple system lockouts ensure instantaneous shutdown capability if an unforeseen event occurs
- Manual operation allows the operator to perform specific unique tasks and can be used in situations where automatic operation is not possible.
Mud Motors
Nabors’ Blue Force® mud motors are customized to specific specifications, built to withstand all drilling fluid types and temperatures, and can help reduce non-productive time.
Key Features
- Mud-lubricated bearing design – not affected by mud type or temperature
- Multiple power section configurations available to suit a variety of drilling environments
- Vertical drilling motors are available that can be configured for any hole size
PadWalker & Hydraulic Ramp Pivot
As pad drilling solutions continue to evolve and improve, walking rigs with crane-less rig-up are quickly becoming a typical feature on location. The Canrig® PadWalker™ was created to support multi-well pad drilling.
Key Features
- Simple in design, easy to maintain, affordable and may be retrofitted to existing catwalks
- Walking speed of 60 feet per hour keeps pace with existing rig walking systems
- Moves forward, backward, sideways or in diagonal directions and can be controlled wirelessly
Wireless Torque, Turn & Tension Sensor
Canrig’s wireless torque, turn and tension sensor, the TesTORK® sub, delivers high speed, precise data over a secure wireless connection. Designed for ease of use and field robustness, the TesTORK® sub meets the demands of tubular services companies and drilling contractors alike.
Key Features
- Real-time monitoring of torque load applied by the top drive during casing connections
- Rechargeable battery eliminates the need for expensive single-use batteries
- Operators can enter connection data of torque limits, turn values, and hold time for the shoulder and peak torque target
Commander™ Drawworks
The Commander™ Drawworks provides more than 50 design configurations, allowing customization of the number of motors and their power type, horsepower and layout, the number of speeds and the braking system.
Key Features
- Ability to use common components to customize performance for any application through configurable main gear box
- Innovative HPU Design
- Optional Friction BrakePlate or Caliper Brake
- Modular Design Model allows for field configurable; flexible orientation allows for motor repositioning to accommodate footprint and height profile needs and transportation limitations
Integra™ Managed Pressure Drilling
Nabors’ fit-for-purpose managed pressure drilling (MPD) equipment and integrated MPD-Ready® drilling rig maximizes efficiencies and makes MPD services more scalable and cost-effective for unconventional land drillers.
Key Features
- Unique automated workflows eliminates the need for pre-job surveys and engineering, and minimizes high mobilization and rig-up costs.
- Elminates need for third-party service provider
- Increased safety, lower cost, reduced pad footprint
Electric and Hydraulic iRacker® System
The iRacker® autonomous tubular handling system, offered in electric and hydraulic-powered units, enables completely hands-free pipe handling. Workers are no longer required on the rig floor to trip pipe.
Key Features
- Allows for offline stand building
- Modular desig for easyt installation on any AC rig with the use of two cranes
- Seamlessly integrates with the SmartROS™ control system, allowing the driller to control all rig floor operations from within the driller’s cabin
Robotic Pipe Handler
The Canrig® robotic pipe handler is capable of automatically performing fast pipe handling, including spinning operations, on a drilling rig.
Key Features
- Fully electric, nine axis robot for pipe and casing
- Self-contained with hardware controls built-in for easy installation and integration
- Low maintenance requirement due to use of standard electric components and oilfilled gears
Drill Floor Robot
In addition to enhancing the safety of drill floor activities, Nabors offers a fully automated drill floor robot system that reduces the non-productive time, noise, energy consumption and emissions typically associated with manual onshore and/or offshore drilling operations.
Driller’s Cabin
The Canrig® climate-controlled driller’s cabin provides integrated joystick control utilizing PLC technology. Touch-screen controls provide enhanced monitoring, control of rig equipment and visibility of drilling parameters.
Key Features
- Modular Design for ability to meet any rig design requirements; configurable for either land or offshore configurations
- Air or Liquid Cooled VFDS allows for higher power density and compact size
- Remote Access Capability allows monitoring of all systems and operations off-site
Power House
The power house is designed with flexible PLC input/output controls that can be expanded to accommodate any size drilling rig.
Key Features
- Modular Design for ability to meet any rig design requirements; configurable for either land or offshore configurations
- Air or Liquid Cooled VFDS allows for higher power density and compact size
- Remote Access Capability allows monitoring of all systems and operations off-site
Blue Force® LWD DrillView®
Nabors offers the FracView® high-resolution LWD imager in 4.75 and 6.5 in collar sizes covering borehole diameter ranges from 5.875 to 9.5 inches. FracView was the first commercially available LWD borehole imager demonstrated to operate in long horizontal wells drilled with oil-based mud.
Key Features
- DeepView Log Viewer capable of viewing and analysis of large volume high resolution drilling dynamics and imaging data in both time and depth domain
- Autonomous operation on any BHA and in any mud
- Suitable for Along String Measurement applications
- Compact 5 ft. long tools
- Economical service delivery
- Battery power and memory for >200 hrs of logging time
Blue Force® LWD SpectraView™
Nabors offers the SpectraView™ LWD spectral/azimuthal gamma ray tools capable of covering borehole sizes from 5.875 to 9.5 inches. The tool measures and records naturally occurring gamma radiation from surrounding formations during wellbore drilling.
Key Features
- Sourceless gain stabilization/compensation
- API calibrated
- User-configurable azimuthal binning
- 80 Mbps ethernet readout protocol
Blue Force® LWD FracView®
Nabors offers the FracView® high-resolution LWD imager in 4.75 and 6.5 in collar sizes covering borehole diameter ranges from 5.875 to 9.5 inches. FracView was the first commercially available LWD borehole imager demonstrated to operate in long horizontal wells drilled with oil-based mud.
Key Features
- Two independent transducers
- 360 degrees of coverage when rotating
- Autonomous operation
- Includes directional sensor for high side detection
- Battery power and memory for 200 hrs of logging time
- Fast readout via 80 Mbps port
- Screw-on stabilizers for wide range of borehole sizes
Blue Force® MWD Pulse
The AccuMP® MWD system differentiates itself from the competition by offering a variety of measurements to support single-station and multi-station analysis, including continuous inclination, real-time shock and vibration monitoring, gamma ray measurements, temperature readings and high-resolution surveys with real-time vector transmission. All measurements can be downloaded in high-resolution format for additional analysis and redundancy of data.
Key Features
- Robust electronics design and packaging to significantly reduce shock and vibration-related failures
- High-resolution data storage available for post drilling analysis
- Continuous inclination for enhanced positional awareness that eliminates check shots and results in a smoother wellbore
- Shock and vibration that mitigate hazardous drilling conditions before problems occur
- Smart telemetry for optimized rotating and sliding sequences for steerability and data logging
- Collar-mount design with no wellsite assembly required
- 24-hour monitoring from a remote center for redundancy and to ensure service quality
Blue Force® Motors
Nabors’ Blue Force® mud motors are customized to specific specifications, built to withstand all drilling fluid types and temperatures, and can help reduce non-productive time.
Key Features
- Mud-lubricated bearing design – not affected by mud type or temperature
- Multiple power section configurations available to suit a variety of drilling environments
- Vertical drilling motors are available that can be configured for any hole size
Coiled Drilling
Capable of drilling up to eight laterals from a single wellbore, Nabors’ unique coiled tubing/stem drilling rig, CDR2-AC, was designed to help a major operator more effectively work over old wells and boost production in Alaska’s Kuparuk field.
Key Features
- Reduced weight of the modules and to avoid breaking through the frozen road surface during transport
- Allows all equipment, including the entire coiled tubing string, to maintain proper warmth and eliminate freeze-up
Side-Saddle
A Side-Saddle® rig is ideal for batch drilling because it can drill the surface along one row of wells, walk to the adjacent row and repeat the same tasks using the same drilling mud.
Key Features
- Vast majority of our Nabors SmartRig® drilling systems feature our proprietary Side-Saddle® Substructures
- Enables simultaneous operations such as coiled tubing, offline cementing or casing running
- Minimal flowline handling is required
Directional-Ready™
Equipped with specially trained drillers, drilling performance software and reliable measurement while drilling (MWD) telemetry, Nabors Directional-Ready™ rigs include integrated downhole equipment and directional drilling instrumentation to enable high-fidelity surveying and precise placement in productive targets of longer lateral wellbores.
Key Features
- Drillers working on Nabors Directional-Ready™ rigs are trained in directional theory, automated HMI sequences, BHA makeup and advanced wellbore placement operations
- Reliable MWD Telemetry
- Integrated Drilling Performance Software with proactive monitoring by remote technicians at the Rigline 24/7™ Command Center
Managed Pressure Ready
Nabors MPD-Ready® rigs feature integrated hardware and software components, and required flow paths, to ascertain the downhole pressure environment limits and manage annular hydraulic pressure during drilling operations. All equipment skids with rig, eliminating non-productive time when moving between wells for multi-well pad drilling.
Key Features
- Mitigates losses during drilling by utilizing the additional capabilities made available through integration
Cementing & Casing Accessories
Nabors offers cementing and casing accessories, including hydroform centralizers, Multi-Lobe Torque™ (MLT®) rings, reaming shoes and cementing solutions.
Key Features
Read more
Deepwater Casing
Nabors offers conventional casing running services for running large OD tubular to heavy lift tubular.
Offshore Completions
Nabors offers conventional and proprietary tubular running services for running offshore drilling tubulars with or without control lines.
Onshore Automated Casing Running
Nabors’ automated tubular service technology brings significant improvements in safety, performance, reliability and efficiency during casing drilling and tubular running operations.
Key Features
- Increased automation and equipment is needed for casing running operations
- Reduces liability and increases the efficiency and safety of operations
Onshore Casing Running
Onshore tubular services and solutions include casing running, tubing running, torque monitoring, pick-up and laydown technology, remotely operated tubular solutions and installation of control lines.
Key Features
- Variety of solutions including casing and tubing running, torque monitoring, and remotely operated tubular solutions
- Ability to run basic to complex well completions
- Safe and Efficient
SmartPLAN®
The SmartPLAN® tool seamlessly manages both the operator’s and drilling contractor’s workflows to deliver digital drilling recipes that optimize efficiency and improve performance.
Key Features
- Enables digitalization of the operator’s and drilling contractor’s workflows
- Step-by-step driller instructions are presented on an intuitive user interface
- The recipe manager incorporates drilling recipes that are configured to reflect industry-wide best practices
- Integrates seamlessly with automation tools like SmartDRILL® and SmartSLIDE® to trigger automation
SmartDRILL®
Proprietary automated drilling activity sequencer that optimizes rig processes. Proven to consistently improve connection times, increase one run laterals and decrease unplanned trips, the SmartDRILL™ system drives scalable cost reduction and improved drilling performance. Workflows are digitalized to improve procedural adherence and ensure that best practices are being configured for future wells.
Key Features
- Engineered sequences automate drilling practices safely and efficiently
- Optimized rig processes reduce downhole equipment damage and unplanned trips
- Best practices are digitalized to produce repeatable results
- Fully integrated with the SmartNAV™ and SmartSLIDE™ systems to enhance performance
- Expanded functionality and performance measurement through integration with RigCLOUD®
SmartROS® Rig Operating System
Nabors SmartROS® automates many repetitive drilling tasks while integrating data from both downhole tools and surface systems. Automating these functions allows the driller to follow the customer’s well plan with a higher level of precision and operational excellence.
Key Features
- Activity-based workflows
- Intuitive, icon-based navigation screens
- Integration of smart features on a single interface, operators can leverage the features of SmartNAV®, SmartSLIDE®, SmartDRILL®, RSS downlinking and ROCKit®
- Automation framework that supports a novel recipe manager that can be triggered by planned depths using the SmartPLAN® system
- Standard on Nabors rigs, but can be installed on any rig domestically or internationally regardless of manufacturer
REVit® Technology
Nabors REVit® technology features advanced top drive automation that eliminates stick slip, a common mode of vibration that limits drilling performance.
Key Features
- Advanced top drive automation that provides real-time stick slip mitigation
- Monitored service to ensure the correct use of the system
- An upgrade to the top drive for effectiveness that does not diminish throughout the run
ROCKit® System
The ROCKit® Suite significantly increases rate of penetration (ROP) by rocking pipe and delivering ideal weight to bit. It promotes improved toolface control by allowing fine adjustments while still drilling ahead, reducing the need for lubricants and other friction-reducing additives. Drillers save time by quickly setting toolface orientation.
Key Features
- Overcome low ROP when sliding by allowing the directional driller to oscillate the drill pipe left and right while slide drilling
- Slow toolface setting time through a patented quill position that enables the driller to quickly orient the toolface prior to sliding
- Steer corrections while slide drilling from the control panel
MASE® Platform
MASE® platform drilling rigs occupy less space and weigh significantly less than conventional platform drilling rigs.
Key Features
Read more
Remote Control Chokes
Nabors offers remote control choke technology to help operators meet the challenges of well pressure control, while reducing costs and enhancing environmental risk and wellsite safety.
Key Features
- Nabors chokes can be tied into existing rig control systems and functions displayed in the driller’s cabin
- Managed pressure drilling can be integrated into the control system
- Rotating heads can be monitored for pressure and wear
Variable Bore Rams
This integrated offering includes variable bore rams (VBRs), which consists of two rams on the blow-out preventer (BOP) that extend to the center of the wellbore. During well control events, VBRs can be used to shut the well in.
Key Features
- Designed to fit the desired drilling application
- Superior rig efficiency and reliability
Rotating Control Devices
This integrated offering includes rotating control devices (RCDs) for the onshore unconventional market. RCDs are utilized for pressure management during drilling for the purpose of making a seal around the drillstring while the drillstring rotates.
Key Features
- Eliminates the need to source multiple third-party vendors with differing service quality and/or safety standards
- Efficient and reliable
BOP Testing
Nabors provides BOP installation and inspection as well as API-compliant, field-proven testing of BOP components in compliance with industry standards.
Key Features
- Safety features, such as isolation and pressure relief valves
- User-friendly control panel
- Test results captured in a digital format, ensuring the integrity of test results and access to an electronic file for future reference
Non-Stop Driller™
Non-Stop Driller™ is a sub-based constant circulation system that allows the continuous circulation of drill fluids downhole while making or breaking drill pipe connections, enabling improved wellbore stability and hole cleaning, reduced risks of influx and optimum drilling performance.
Key Features
- Enhanced cleaning and continuous solids transport
- Provides seamless integration to UBD/MPD operations, offering unprecedented bottom-hole pressure control on connections
- Eliminates post-connection stabilization time during multiphase drilling on air, foam and two-phase wells
SmartSLIDE® Automated Slide Drilling
The SmartSLIDE™ system integrates critical downhole information needed for directional drilling and then automatically implements corrective instructions and steering logic during slide drilling operations.
Key Features
- Configurable directional steering control system
- Visualization and analysis tools of the planned and as-drilled trajectory
- Fully integrated with the SmartNAV™ directional guidance software and the SmartDRILL™ machine task sequencer
- Customized service through operations experts to facilitate training, remote support and KPI monitoring to ensure operational performance
- Expanded functionality and performance measurement through integration with RigCLOUD®
SmartNAV® Directional Guidance System
Nabors’ SmartNAV® platform is an automated directional drilling decision-making system that visualizes the downhole positions of the drill bit and the planned well path and automatically generates instructions to keep the well on course.
Key Features
- Visualization and analysis tools of the planned and as-drilled trajectory
- Facilitates collaboration between users at the rig or in a remote operating center
- Interactive slide or rotate steering instructions provided on a stand-by-stand basis
- Customizable rules, best practices and steering tolerances
- Expanded functionality through integration with RigCLOUD®
PACE®-R
The PACE®-R800 rig utilizes technology optimized for drilling automation with Nabors Rigtelligent® control system. The rack and pinion technology enables the precise control of block position required for advanced automati
Key Features
- Rack and pinion hoisting system reduces mechanical components like drawworks, traveling block, crown, deadline anchor, drill line spooler etc., improving rig-up time and reducing downtime
- Current hookload capacity rated at 800 kips can be scaled up to 1,000 kips
- Custom designed pipe handling equipment to handle drill pipe and casing up to 13-3/8”
PACE®-M
As lateral lengths continue to increase, drillers need a rig with more power and greater tripping speed. Nabors PACE®-M800 rig features innovative advanced technologies that provide both.
Key Features
- Three 1,600-horsepower mud pumps with 7,500 PSI to deliver high flow rates
- 3,000 horsepower drawworks that enable trip speeds of 380 feet per minute
- When drilling laterals at or greater than 7,500 feet, the PACE®-M800 rig’s racking capacity eliminates the need to lay down drill pipe between wells on the same pad.
PACE®-X
With over 20 years of experience in designing custom solutions for the oilfield industry, engineers are available to integrate top drives, catwalks, casing running tools or other equipment into any desired rig, including rigs of the future or older classes of rigs ready to see a new age of drilling
Key Features
- Autodriller DrillSmart® system allows more efficient drilling than any other autodriller
- Large rig floor with below-deck storage enables an efficient and safe rig floor
